Descripción completa
Las conteras en ángulo para tubo redondo son adecuadas para la aplicación en tubos redondos. Fabricados en LDPE, PEBD, polietileno de baja densidad.
Variantes del producto
Desde aqui se puede solicitar presupuesto o pedir muestras

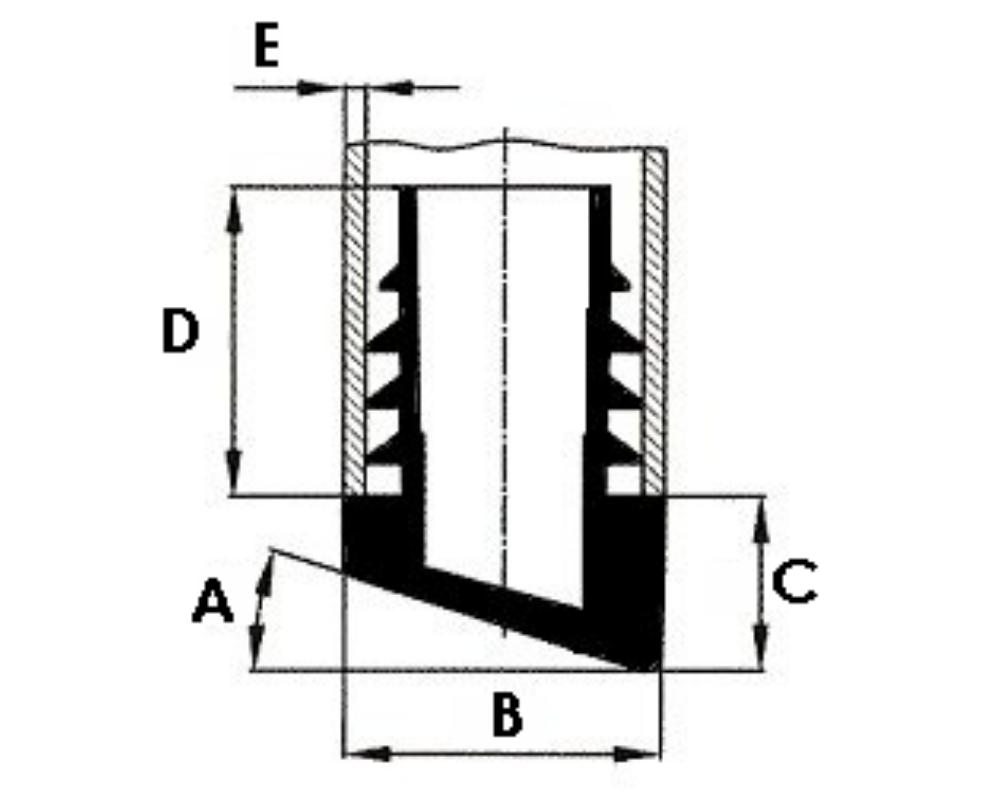

| Referencia | A | B | C | D | EspesorTubo | |
| | | | | | |
| 31E-16-6 | 6 | 16 | 6,5 | 20 | 2-2,5 |  |
| 31E-16-9 | 9 | 16 | 6,8 | 20 | 2-2,5 | |
| 31E-16-12 | 12 | 16 | 7,2 | 20 | 2-2,5 | |
| 31E-16-15 | 15 | 16 | 7,9 | 20 | 2-2,5 | |
| 31E-16-18 | 18 | 16 | 9,5 | 20 | 2-2,5 | |
| 31E-16-21 | 21 | 16 | 9,7 | 20 | 2-2,5 | |
| 31E-16-24 | 24 | 16 | 10,4 | 20 | 2-2,5 | |
| 31E-18-6 | 6 | 18 | 6,5 | 20 | 1,5-2 | |
| 31E-18-9 | 9 | 18 | 6,7 | 20 | 1,5-2 | |
| 31E-18-12 | 12 | 18 | 7,2 | 20 | 1,5-2 | |
| 31E-18-15 | 15 | 18 | 9 | 20 | 1,5-2 | |
| 31E-18-18 | 18 | 18 | 9,3 | 20 | 1,5-2 | |
| 31E-18-21 | 21 | 18 | 11 | 20 | 1,5-2 | |
| 31E-18-24 | 24 | 18 | 11,4 | 20 | 1,5-2 | |
| 31E-19-6 | 6 | 19 | 6,7 | 20 | 1,5-2 | |
| 31E-19-6 | 6 | 19 | 6,7 | 20 | 2-2,5 | |
| 31E-19-9 | 9 | 19 | 7 | 20 | 1,5-2 | |
| 31E-19-9 | 9 | 19 | 7 | 20 | 2-2,5 | |
| 31E-19-12 | 12 | 19 | 7,5 | 20 | 1,5-2 | |
| 31E-19-12 | 12 | 19 | 7,5 | 20 | 2-2,5 | |
| 31E-19-15 | 15 | 19 | 9,2 | 20 | 1,5-2 | |
| 31E-19-15 | 15 | 19 | 9,2 | 20 | 2-2,5 | |
| 31E-19-18 | 18 | 19 | 9,6 | 20 | 1,5-2 | |
| 31E-19-18 | 18 | 19 | 9,6 | 20 | 2-2,5 | |
| 31E-19-21 | 21 | 19 | 11 | 20 | 1,5-2 | |
| 31E-19-21 | 21 | 19 | 11 | 20 | 2-2,5 | |
| 31E-19-24 | 24 | 19 | 11,5 | 20 | 1,5-2 | |
| 31E-19-24 | 24 | 19 | 11,5 | 20 | 2-2,5 | |
| 31E-20-6 | 6 | 20 | 7 | 20 | 1,5-2 | |
| 31E-20-6 | 6 | 20 | 7 | 20 | 2-2,5 | |
| 31E-20-9 | 9 | 20 | 7 | 20 | 1,5-2 | |
| 31E-20-9 | 9 | 20 | 7 | 20 | 2-2,5 | |
| 31E-20-12 | 12 | 20 | 9 | 20 | 1,5-2 | |
| 31E-20-12 | 12 | 20 | 9 | 20 | 2-2,5 | |
| 31E-20-15 | 15 | 20 | 10 | 20 | 1,5-2 | |
| 31E-20-15 | 15 | 20 | 10 | 20 | 2-2,5 | |
| 31E-20-18 | 18 | 20 | 11 | 20 | 1,5-2 | |
| 31E-20-18 | 18 | 20 | 11 | 20 | 2-2,5 | |
| 31E-20-21 | 21 | 20 | 11,8 | 20 | 1,5-2 | |
| 31E-20-21 | 21 | 20 | 11,8 | 20 | 2-2,5 | |
| 31E-20-24 | 24 | 20 | 12 | 20 | 1,5-2 | |
| 31E-20-24 | 24 | 20 | 12 | 20 | 2-2,5 | |
| 31E-22-6 | 6 | 22 | 7 | 20 | 1,5-2 | |
| 31E-22-6 | 6 | 22 | 7 | 20 | 2-2,5 | |
| 31E-22-9 | 9 | 22 | 7,8 | 20 | 1,5-2 | |
| 31E-22-9 | 9 | 22 | 7,8 | 20 | 2-2,5 | |
| 31E-22-12 | 12 | 22 | 8 | 20 | 1,5-2 | |
| 31E-22-12 | 12 | 22 | 8 | 20 | 2-2,5 | |
| 31E-22-15 | 15 | 22 | 10 | 20 | 1,2-2 | |
| 31E-22-15 | 15 | 22 | 10 | 20 | 2,5-3 | |
| 31E-22-18 | 18 | 22 | 10 | 20 | 1,5-2 | |
| 31E-22-18 | 18 | 22 | 10 | 20 | 2-2,5 | |
| 31E-22-21 | 21 | 22 | 11,5 | 20 | 1,5-2 | |
| 31E-22-21 | 21 | 22 | 11,5 | 20 | 2-2,5 | |
| 31E-22-24 | 24 | 22 | 12 | 20 | 1,5-2 | |
| 31E-22-24 | 24 | 22 | 12 | 20 | 2-2,5 | |
| 31E-25-6 | 6 | 25 | 7,2 | 20 | 1,5-2 | |
| 31E-25-6 | 6 | 25 | 7,2 | 20 | 2-2,5 | |
| 31E-25-9 | 9 | 25 | 8,5 | 20 | 1,5-2 | |
| 31E-25-12 | 12 | 25 | 9,5 | 20 | 1,5-2 | |
| 31E-25-15 | 15 | 25 | 12 | 20 | 1,5-2 | |
| 31E-25-18 | 18 | 25 | 12 | 20 | 1,5-2 | |
| 31E-25-21 | 21 | 25 | 12,7 | 20 | 1,5-2 | |
| 31E-25-21 | 21 | 25 | 12,7 | 20 | 2-2,5 | |
| 31E-25-24 | 24 | 25 | 13,5 | 20 | 1,5-2 | |
| 31E-25-24 | 24 | 25 | 13,5 | 20 | 2-2,5 | |
| 31E-5-50 | 50 | 5 | 34 | - | M8 | |
| 31E-5-50 | 50 | 5 | 35 | 8 | M10 | |
| 31E-5-50 | 50 | 5 | 34 | - | M8 | |
| 31E-5-50 | 50 | 5 | 35 | 8 | M10 | |
| 31E-5-50 | 50 | 5 | 35 | 10 | M12 | |
| 31E-5-50 | 50 | 5 | 34 | - | M8 | |
| 31E-5-54 | 54 | 5 | 34 | - | M10 | |
| 31E-5-60 | 60 | 5 | 35 | 8 | M10 | |
| 31E-5-60 | 60 | 5 | 34 | - | M8 | |
| 31E-5-60 | 60 | 5 | 35 | 8 | M10 | |
| 31E-5-60 | 60 | 5 | 32 | - | M12 | |
| 31E-5-60 | 60 | 5 | 39 | - | M12 | |
| 31E-6-70 | 70 | 6 | 52 | - | M12 | |
| 31E-5-70 | 70 | 5 | 35 | 8 | M10 | |
| 31E-1-8 | 8 | 1 | #¡REF! | #¡REF! | #¡REF! | |
