Descripción completa
Las conteras son adecuadas para la aplicación en tubos. Disponibles en varios colores, acabados y medidas.
Variantes del producto
Desde aqui se puede solicitar presupuesto o pedir muestras

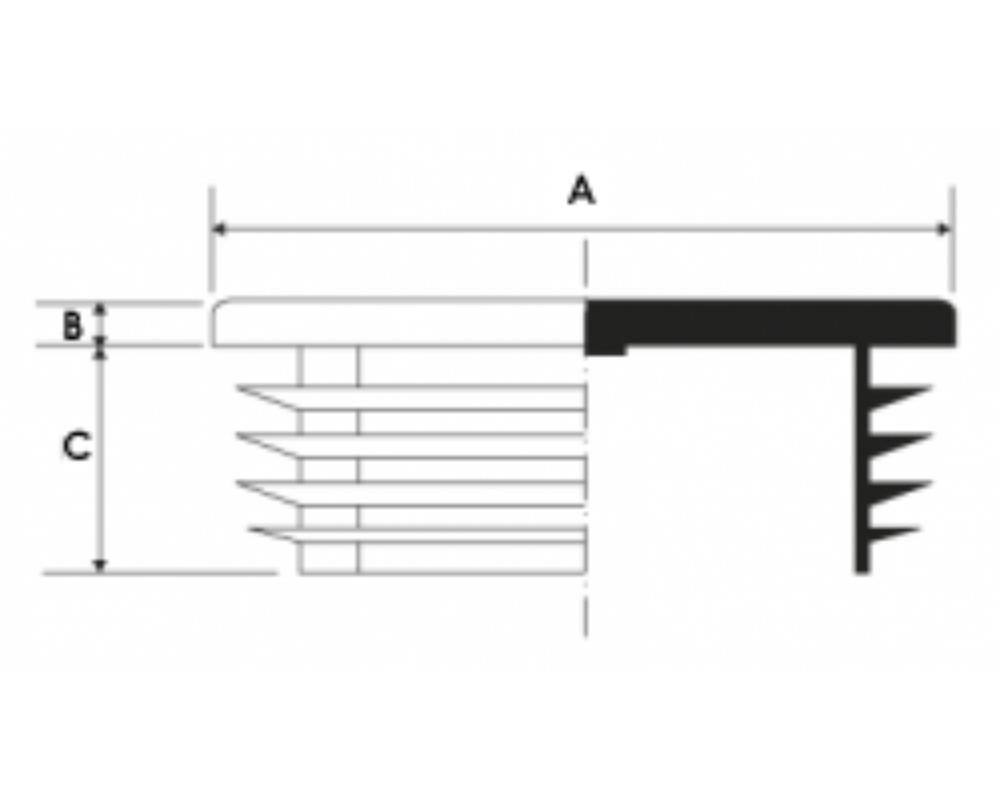

| Referencia | A | B | C | EspesorTubo | |
| | | | | |
| 315-10 | 10 | 3,5 | 11 | 1,0 - 2,0 |  |
| 315-12 | 12 | 3,5 | 11 | 1,0 - 2,0 | |
| 315-13 | 13 | 4 | 11 | 1,0 - 2,0 | |
| 315-14 | 14 | 5 | 11,5 | 1,0 - 2,0 | |
| 315-15 | 15 | 3 | 13 | 1,0 - 2,0 | |
| 315-16 | 16 | 5 | 11 | 1,0 - 2,0 | |
| 315-18 | 18 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-19 | 19 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-20 | 20 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-21 | 21 | 5 | 11,5 | 1,0 - 2,0 | |
| 315-22 | 22 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-22+2 | 22 | 5 | 11,5 | 2,0 - 3,5 | |
| 315-23 | 23 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-24 | 24 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-24+3 | 24 | 5 | 11,5 | 3,0 - 3,5 | |
| 315-25 | 25 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-25+3.5 | 25 | 5 | 11,5 | 3,5 - 4,0 | |
| 315-25,4 | 25,4 | 5 | 11,5 | 1,2 - 3,2 | |
| 315-26 | 26 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-27 | 27 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-28 | 28 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-30 | 30 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-30+2.5 | 30 | 5 | 11,5 | 2,5 - 4,5 | |
| 315-32 | 32 | 5 | 12 | 1,0 - 2,5 | |
| 315-32+2.5 | 32 | 5 | 11,5 | 2,5 - 4,5 | |
| 315-32+3.5 | 32 | 5 | 11,5 | 3,5 - 5,5 | |
| 315-34 | 34 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-34+3.5 | 34 | 5 | 11,5 | 3,5 - 4,0 | |
| 315-35 | 35 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-35+2.5 | 35 | 5 | 11,5 | 2,5 - 4,5 | |
| 315-36 | 36 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-37 | 37 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-38 | 38 | 5 | 11,5 | 1,0 - 3,5 | |
| 315-38+3 | 38 | 5 | 11,5 | 3,0 - 5,0 | |
| 315-40 | 40 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-40+3 | 40 | 5 | 11,5 | 3,0 - 5,0 | |
| 315-42 | 42 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-42+2 | 42 | 5 | 11,5 | 2,0 - 4,0 | |
| 315-43 | 43 | 5 | 11,5 | 2,0 - 2,5 | |
| 315-44,5 | 44,5 | 5 | 11,5 | 1,2 - 3,2 | |
| 315-45 | 45 | 5 | 11 | 1,0 - 3,5 | |
| 315-45+3 | 45 | 5 | 11,5 | 3,0 - 5,0 | |
| 315-46 | 46 | 5 | 11,5 | 1,5 - 3,5 | |
| 315-48 | 48 | 5 | 11,5 | 1,2 - 3,6 | |
| 315-48+2.5 | 48 | 5 | 11,5 | 2,5 - 5,0 | |
| 315-50 | 50 | 5 | 11,5 | 1,0 - 2,5 | |
| 315-50+2.5 | 50 | 5 | 11,5 | 2,5 - 4,5 | |
| 315-50+3.5 | 50 | 5 | 11,5 | 3,5 - 6,0 | |
| 315-50,8 | 50,8 | 5 | 11,5 | 1,2 - 3,0 | |
| 315-52 | 52 | 5 | 14,5 | 1,5 - 3,5 | |
| 315-55 | 55 | 5 | 11,5 | 1,0 - 3,0 | |
| 315-55+3 | 55 | 5 | 14,5 | 3,0 - 5,0 | |
| 315-57.2 | 57,2 | 5 | 14,5 | 1,2 - 2,7 | |
| 315-60 | 60 | 5 | 18,5 | 1,5 - 3,0 | |
| 315-60+3 | 60 | 5 | 21 | 3,0 - 4,5 | |
| 315-63,5 | 63,5 | 5 | 20,5 | 1,5 - 3,5 | |
| 315-65 | 65 | 5 | 21 | 1,5 - 3,5 | |
| 315-65+3 | 65 | 5 | 21 | 3,0 - 5,0 | |
| 315-70 | 70 | 5 | 21 | 1,5 - 4,5 | |
| 315-75 | 75 | 6 | 21,5 | 1,0 - 3,5 | |
| 315-75+3 | 75 | 6 | 21,5 | 3,0 - 5,0 | |
| 315-76 | 76 | 6 | 21,5 | 1,6 - 4,0 | |
| 315-76+3.5 | 76 | 6 | 21,5 | 3,5 - 6,0 | |
| 315-80 | 80 | 4 | 21 | 1,5 - 3,0 | |
| 315-80+3 | 80 | 4 | 21 | 3,0 - 5,5 | |
| 315-82.6 | 82,6 | 6 | 21 | 2,0 - 4,5 | |
| 315-85 | 85 | 6 | 21 | 1,5 - 4,0 | |
| 315-85+3.5 | 85 | 6 | 21 | 3,5 - 6,0 | |
| 315-88 | 88,9 | 6 | 21,5 | 1,8 - 4,0 | |
| 315-88+3.5 | 88,9 | 6 | 21 | 3,5 - 6,0 | |
| 315-90 | 90 | 6 | 20 | 2,5 - 5,0 | |
| 315-95 | 95 | 6 | 21 | 1,5 - 4,0 | |
| 315-100 | 100 | 6 | 28,5 | 2,0 - 4,5 | |
| 315-101.6 | 101,6 | 6 | 28 | 3,6 - 6,0 | |
| 315-102 | 102 | 5 | 20 | 2,0 - 4,0 | |
| 315-105 | 105 | 6 | 29 | 2,0 - 4,5 | |
| 315-108 | 108 | 6 | 28 | 3,0 - 5,0 | |
| 315-110 | 110 | 6 | 28,5 | 2,0 - 4,5 | |
| 315-114 | 114 | 6 | 29 | 3,2 - 5,5 | |
| 315-120 | 120 | 6 | 28,5 | 2,0 - 4,0 | |
| 315-125 | 125 | 6 | 33 | 2,0 - 6,0 | |
| 315-127 | 127 | 6 | 33 | 3,2 - 7,0 | |
| 315-130 | 130 | 6 | 33 | 2,0 - 6,0 | |
| 315-133 | 133 | 6 | 33 | 2,0 - 6,0 | |
| 315-140 | 140 | 6 | 34 | 2,0 - 6,5 | |
| 315-150 | 150 | 6 | 34 | 2,0 - 7,0 | |
| 315-152.4 | 152,4 | 6 | 34 | 3,5 - 7,5 | |
| 315-159 | 159 | 6 | 34 | 2,0 - 6,5 | |
| 315-160 | 160 | 6 | 34 | 2,5 - 7,0 | |
| 315-165 | 165 | 6 | 34 | 3,2 - 7,5 | |
| 315-168.3 | 168,3 | 6 | 34 | 2,0 - 6,5 | |
| 315-177.8 | 177,8 | 6 | 34 | 3,2 - 8,0 | |
| 315-193.7 | 193,7 | 6 | 34 | 2,9 - 8,0 | |
