Disco protector de brida

Disco protector de brida
Referencia: 1CH

Categoría del producto: Tapones y capuchones

Subcategoría del producto:Protecciones para Bridas

Material: LDPE

Color: Negro

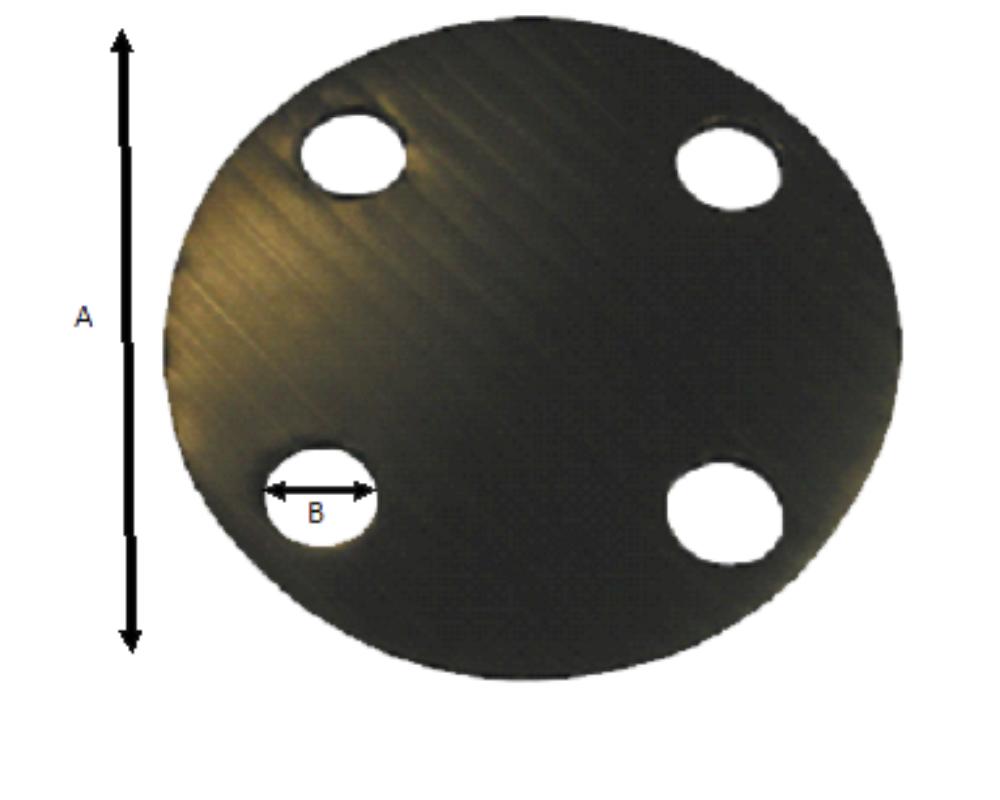

Planos:

Descripción completa

Disco de polietileno, PE, con cuatro orificios para protección de bridas, la distribución de los agujeros otorga facilidad en la colocación. Requiere de abrazaderas para su montaje. Para bridas desde DN 10 a DN 600.

Variantes del producto

Desde aqui se puede solicitar presupuesto o pedir muestras

Buscar Limpiar filtros

Referencia	A	B	DN

1CH-DN 10	75.0	11.0	DN 10
1CH-DN 15	80.0	11.0	DN 15
1CH-DN 20	90.0	11.0	DN 20
1CH-DN 25	100.0	11.0	DN 25
1CH-DN 32	120.0	14.0	DN 32
1CH-DN 40	130.0	14.0	DN 40
1CH-DN 50	140.0	14.0	DN 50
1CH-DN 65	160.0	14.0	DN 65
1CH-DN 80	190.0	18.0	DN 80
1CH-DN 100	210.0	18.0	DN 100
1CH-DN 125	240.0	18.0	DN 125
1CH-DN 150	265.0	18.0	DN 150
1CH-DN 200	320.0	18.0	DN 200
1CH-DN 250	375.0	18.0	DN 250
1CH-DN 300	440.0	22.0	DN 300
1CH-DN 350	490.0	22.0	DN 350
1CH-DN 400	540.0	22.0	DN 400
1CH-DN 500	645.0	22.0	DN 500
1CH-DN 600	755.0	24.0	DN 600
1CH-DN 10	90.0	14.0	DN 10
1CH-DN 15	95.0	14.0	DN 15
1CH-DN 20	105.0	14.0	DN 20
1CH-DN 25	115.0	14.0	DN 25
1CH-DN 32	140.0	18.0	DN 32
1CH-DN 40	150.0	18.0	DN 40
1CH-DN 50	165.0	18.0	DN 50
1CH-DN 65	185.0	18.0	DN 65
1CH-DN 80	200.0	18.0	DN 80
1CH-DN 100	220.0	18.0	DN 100
1CH-DN 125	250.0	18.0	DN 125
1CH-DN 150	285.0	22.0	DN 150
1CH-DN 200	340.0	22.0	DN 200
1CH-DN 250	395.0	22.0	DN 250
1CH-DN 300	445.0	22.0	DN 300
1CH-DN 350	505.0	22.0	DN 350
1CH-DN 400	565.0	26.0	DN 400
1CH-DN 500	670.0	26.0	DN 500
1CH-DN 600	780.0	27.0	DN 600
1CH-DN 10	90.0	14.0	DN 10
1CH-DN 15	95.0	14.0	DN 15
1CH-DN 20	105.0	14.0	DN 20
1CH-DN 25	115.0	14.0	DN 25
1CH-DN 32	140.0	18.0	DN 32
1CH-DN 40	150.0	18.0	DN 40
1CH-DN 50	165.0	18.0	DN 50
1CH-DN 65	185.0	18.0	DN 65
1CH-DN 80	200.0	18.0	DN 80
1CH-DN 100	220.0	18.0	DN 100
1CH-DN 125	250.0	18.0	DN 125
1CH-DN 150	285.0	22.0	DN 150
1CH-DN 200	340.0	22.0	DN 200
1CH-DN 250	405.0	26.0	DN 250
1CH-DN 300	460.0	26.0	DN 300
1CH-DN 350	520.0	26.0	DN 350
1CH-DN 400	580.0	30.0	DN 400
1CH-DN 500	715.0	33.0	DN 500
1CH-DN 600	840.0	33.0	DN 600
1CH-DN 10	90.0	14.0	DN 10
1CH-DN 15	95.0	14.0	DN 15
1CH-DN 20	105.0	14.0	DN 20
1CH-DN 25	115.0	14.0	DN 25
1CH-DN 32	140.0	18.0	DN 32
1CH-DN 40	150.0	18.0	DN 40
1CH-DN 50	165.0	18.0	DN 50
1CH-DN 65	185.0	18.0	DN 65
1CH-DN 80	200.0	18.0	DN 80
1CH-DN 100	235.0	22.0	DN 100
1CH-DN 125	270.0	26.0	DN 125
1CH-DN 150	300.0	26.0	DN 150
1CH-DN 200	360.0	26.0	DN 200
1CH-DN 250	425.0	30.0	DN 250
1CH-DN 300	485.0	30.0	DN 300
1CH-DN 350	555.0	33.0	DN 350
1CH-DN 400	620.0	36.0	DN 400
1CH-DN 500	730.0	36.0	DN 500
1CH-DN 600	845.0	36.0	DN 600
1CH-DN 10	90.0	14.0	DN 10
1CH-DN 15	95.0	14.0	DN 15
1CH-DN 20	105.0	14.0	DN 20
1CH-DN 25	115.0	14.0	DN 25
1CH-DN 32	140.0	18.0	DN 32
1CH-DN 40	150.0	18.0	DN 40
1CH-DN 50	165.0	18.0	DN 50
1CH-DN 65	185.0	18.0	DN 65
1CH-DN 80	200.0	18.0	DN 80
1CH-DN 100	235.0	22.0	DN 100
1CH-DN 125	270.0	26.0	DN 125
1CH-DN 150	300.0	26.0	DN 150
1CH-DN 200	375.0	30.0	DN 200
1CH-DN 250	450.0	33.0	DN 250
1CH-DN 300	515.0	33.0	DN 300
1CH-DN 350	580.0	36.0	DN 350
1CH-DN 400	660.0	39.0	DN 400
1CH-DN 500	755.0	42.0	DN 500
1CH-043862	88.9	15.9
1CH-043924	98.4	15.9
1CH-1"	108.0	15.9
1CH-1.1/4	117.5	15.9
1CH-1.1/2	127.0	15.9
1CH-2"	152.4	19.1
1CH-2.1/2	177.8	19.1
1CH-3"	190.5	19.1
1CH-3.1/2	215.9	19.1
1CH-4"	228.6	19.1
1CH-5"	254.0	22.2
1CH-6"	279.4	22.2
1CH-8"	342.9	22.2
1CH-10"	406.4	25.4
1CH-12"	482.6	25.4
1CH-14"	533.4	28.6
1CH-16"	596.9	28.6
1CH-18"	635.0	31.8
1CH-20"	698.5	31.8
1CH-22"	749.3	34.9
1CH-24"	812.8	34.9
1CH-26"	870.0	34.9
1CH-28"	927.1	34.9
1CH-30"	984.3	34.9
1CH-32"	1060.5	41.3
1CH-34"	1111.3	41.3
1CH-36"	1168.4	41.3
1CH-043862	95.3	15.9
1CH-043924	117.5	19.1
1CH-1"	123.8	19.1
1CH-1.1/4	133.4	19.1
1CH-1.1/2	155.6	22.2
1CH-2"	165.1	19.1
1CH-2.1/2	190.5	22.2
1CH-3"	209.6	22.2
1CH-3.1/2	228.6	22.2
1CH-4"	254.0	22.2
1CH-5"	279.4	22.2
1CH-6"	317.5	22.2
1CH-8"	381.0	25.4
1CH-10"	444.5	28.6
1CH-12"	520.7	31.8
1CH-14"	584.2	31.8
1CH-16"	647.7	34.9
1CH-18"	711.2	34.9
1CH-20"	774.7	34.9
1CH-22"	838.2	41.3
1CH-24"	914.4	41.3
1CH-26"	971.6	44.5
1CH-28"	1035.1	44.5
1CH-30"	1092.2	47.6
1CH-32"	1149.4	50.8
1CH-34"	1206.5	50.8
1CH-043862	95.3	15.9
1CH-043924	117.5	19.1
1CH-1"	123.8	19.1
1CH-1.1/4	133.4	19.1
1CH-1.1/2	155.6	22.2
1CH-2"	165.1	19.1
1CH-2.1/2	190.5	22.2
1CH-3"	209.6	22.2
1CH-3.1/2	228.6	25.4
1CH-4"	273.1	25.4
1CH-5"	330.2	28.6
1CH-6"	355.6	28.6
1CH-8"	419.1	31.8
1CH-10"	508.0	34.9
1CH-12"	558.8	34.9
1CH-14"	590.6	38.1
1CH-16"	685.8	41.3
1CH-18"	743.0	44.5
1CH-20"	812.8	44.5
1CH-22"	870.0	44.5
1CH-24"	939.8	50.8
1CH-26"	1016.	50.8
1CH-28"	1073.2	54.0
1CH-30"	1130.3	54.0
1CH-32"	1193.8	60.3
1CH-043862	120.7	22.2
1CH-043924	130.2	22.2
1CH-1"	149.2	25.4
1CH-1.1/4	158.8	25.4
1CH-1.1/2	177.8	28.6
1CH-2"	215.9	25.4
1CH-2.1/2	244.5	28.6
1CH-3"	241.3	25.4
1CH-4"	292.1	31.8
1CH-5"	349.3	34.9
1CH-6"	381.0	31.8
1CH-8"	469.9	38.1
1CH-10"	546.1	38.1
1CH-12"	609.6	38.1
1CH-14"	641.4	41.3
1CH-16"	704.9	44.5
1CH-18"	787.4	50.8
1CH-20"	857.3	54.0
1CH-24"	1041.4	66.7
1CH-26"	1085.9	73.0
1CH-28"	1168.4	79.4
